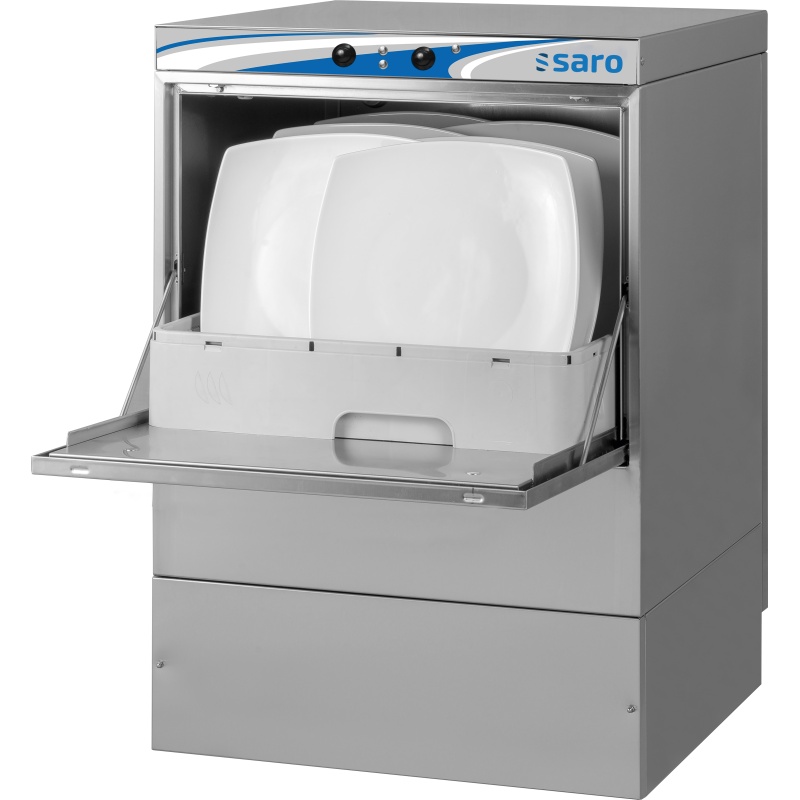

Very easy in use, cleaning, maintenance and even servicing
.
Perfect for washing plates, cutlery, glasses, mugs, trays
.
Electromechanical controls.

Housing made of stainless steel AISI 304
.
Separate spray arms for washing (plastic) and rinsing (stainless steel
).
Fixed washing arms at the top, rotating stainless steel rinsing arms
.
Solid double-skin door
.
Washing cycles number/duration: 1/120 s.

Capacity: up to 30 baskets/h.

Water consumption per cycle: 2-2,5 l (depending on water pressure)
.
Washing water temperature: 62°C, rinse water temperature: 85°C
.
Boiler (capacity/power): 6 l/3 kW for 230V and 6 kW for 400V
.
Tank (capacity/power): 35 l/2,8 kW.

Pump power: 0,75 HP.

Safety thermostat for boiler/for tank up to 105°C/99°C
.
Analog water thermometer for boiler.

IP44 protection class.

Weight: 57 kg
.
EQUIPMENT:
 1x universal baskets 500x500x(H)105 mm for glasses
, 1x basket with pins 500x500x(H)105 mm for plates
, 1x cutlery basket 110x110x(H)130 mm
, water supply hose length 1,5 m with connection 3/4” inner thread
, drain hose length 2 m Ø 25 mm
, power cord without plug,
rinse aid dispenser
, adjusted for detergent pump installation (screw in tank rear wall). Vertically adjustable legs: ±10 mm, Ø 40 mm.

Extremely easy to use, clean and service.
Ideal for cleaning plates, cutlery, glassware, cups, trays.
Electronic controls.
Detergent and rinse aid dispensers and pump standard included.
Housing made of stainless steel AISI 304.
Rotating plastic washing and stainless steel rinsing arms at the bottom of the chamber.
Stationary plastic washing arms and rotating stainless steel rinse arms at the top of the chamber.
Robust double-skinned door fitted with a microswitch, stops the program when opened.
Maximum height of glasses: 325 mm.
Maximum height of plates: 335 mm.
Water temperature during washing: 60°C.
Water temperature during rinsing: 85°C.
Boiler (capacity/power): 6L / 6 kW
Bath (capacity/power): 35L / 2.8 kW.
Washing pump: 0,75 kM.
Safety thermostat for boiler/bath: up to 105°C / 99°C.
Electronic water thermometer for boiler and tank.
Sealing factor of the pump: IP 44
ø40 mm feet, ±10 mm in height adjustable
Weight: 55 kg.

FUNCTIONS:
Three washing programs: 60, 120, 180 s. (The washing program will be automatically extended with the time needed for warming up the rinsing water to +85°C)
Dishwasher chamber cleaning program.
Cold rinse function - ideal for glass washing.
THERMO-PROTECTOR system to prevent cold water flushing - guarantees the rinsing won't start till the temperature is 85°C.
SOFT START system starts the water pump at a low level pressure and gradually increases the pressure to protect delicate items.
8-point self-diagnostic system.
ECO system - for reduced power consumption.

BENEFITS OF COLD RINSE:
Cools down the glasses after cleaning, making them ready for use immediately.
Removes the smell of rinse aid, ideal for wine glasses.

EQUIPMENT:
1 universal glass basket 500x500x(H)105 mm.
1 basket with pins for deep and shallow plates with 5x8 pcs, 500x500x(H)105 mm.
1 cutlery basket 110x110x(H)130 mm.
Electric detergent and rinse aid dispenser.
Water hose 1. 5 m long, with 3/4 female thread connection.
Drain pump and drain hose.
Power cord without plug.

Very easy in use, cleaning, maintenance and even servicing
.
Perfect for washing plates, cutlery, glasses, mugs, trays
.
Electromechanical controls.

Housing made of stainless steel AISI 304
.
Separate spray arms for washing (plastic) and rinsing (stainless steel
).
Fixed washing arms at the top, rotating stainless steel rinsing arms
.
Solid double-skin door
.
Washing cycles number/duration: 1/120 s.

Capacity: up to 30 baskets/h.

Water consumption per cycle: 2-2,5 l (depending on water pressure)
.
Washing water temperature: 62°C, rinse water temperature: 85°C
.
Boiler (capacity/power): 6 l/3 kW for 230V and 6 kW for 400V
.
Tank (capacity/power): 35 l/3,6 kW.

Pump power: 0,75 HP.

Safety thermostat for boiler/for tank up to 105°C/99°C
.
Analog water thermometer for boiler.

IP44 protection class.

Weight: 57 kg
.
EQUIPMENT:
 1x universal baskets 500x500x(H)105 mm for glasses
, 1x basket with pins 500x500x(H)105 mm for plates
, 1x cutlery basket 110x110x(H)130 mm
, water supply hose length 1,5 m with connection 3/4” inner thread
, drain hose length 2 m Ø 25 mm
, power cord without plug,
rinse aid dispenser
, adjusted for detergent pump installation (screw in tank rear wall). Vertically adjustable legs: ±10 mm, Ø 40 mm.

Material: (housing and wash arm) stainless steel .
Electronic control with 3 programs .
Self-Diagnostic-System .
Double-walled door, height 360 mm .
1 glass basket included, W 500 x D 500 x H 100 mm .
1 cutlery basket included, W 110 x D 110 x H 130 mm .
1 plate tray included, W 500 x D 500 x H 100 mm .
Pressure reducer .
Peristaltic detergent and rinse aid pump, draining pump and dirt filter .
Max.
plate height: approx.
335 mm .
Max.
glass height: approx.
325 mm .
Cycle: 60 / 120 / 180 seconds.
Boiler: capacity 6 litre, heating element: 3,0 kW .
Tank: capacity 35 litre, heating element: 2,8 kW.
Weight: 60 kg.
Dimensions: W 570mm x T 600mm x H 830mm.
Capacity: Boiler: 6 / Tank: 35 liter.
Conn.: 230 V - 50 Hz - 3,6 kW.
