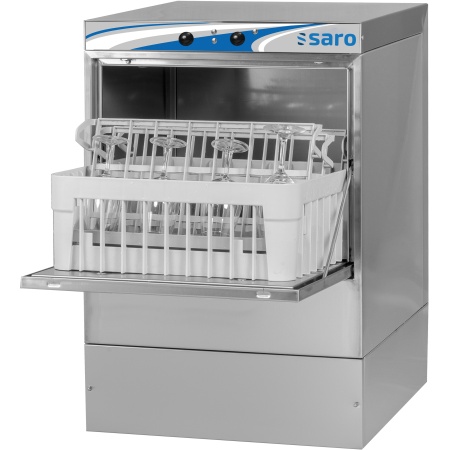

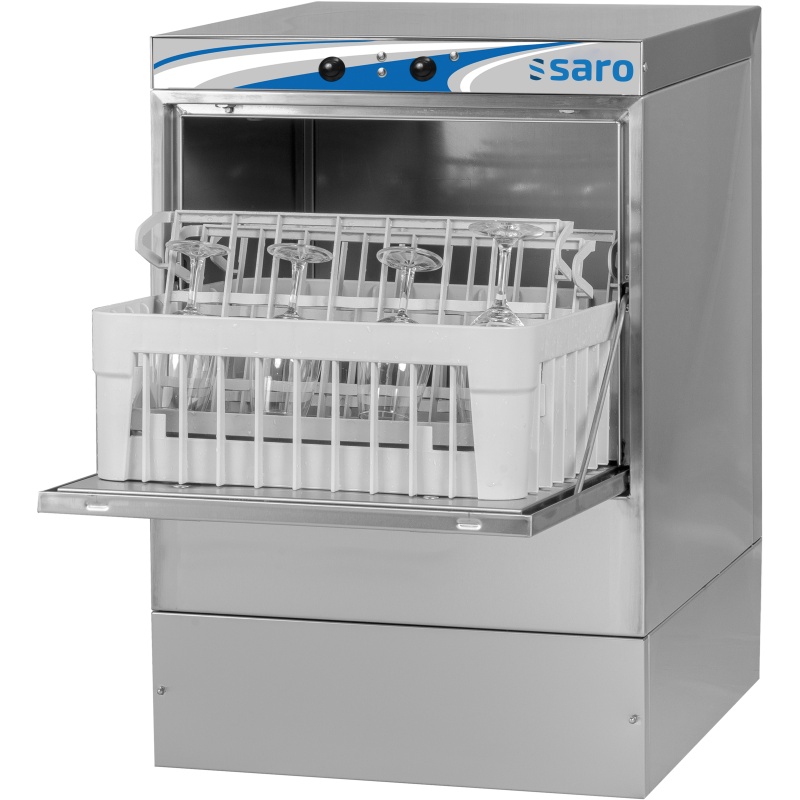

SARO Dishwasher model FREIBURG
Material: (housing and wash arm) stainless steel.
Double-walled door, height 320 mm.
1 glass basket included, W 400 x D 400 x H 130 mm.
1 cutlery basket included, W 110 x D 110 x H 130 mm.
1 plate tray included, W 400 x D 400 x H 110 mm.
Pressure reducer.
Detergent pump, hydraulic rinse aid pump, draining pump and dirt filter.
Max.
plate height: approx.
295 mm.
Max.
glass height: approx.
290 mm.
Cycle: 120 seconds.
Boiler: capacity 3,5 litre, heating element: 2,5 kW.
Tank: capacity 17 litre, heating element: 2,5 kW.
Weight: 43 kg.
Dimensions: W 470mm x T 510mm x H 710mm.
Conn.: 230 V - 50 Hz - 2,8 kW.
| Net weight, kg | 42 |
Very easy in use, cleaning, maintenance and even servicing.
Perfect for washing mugs, cups, glasses, cutlery, plates.
Electromechanical controls
.
Housing made of stainless steel AISI 304
.
Separate stainless steel spray arms for washing and rinsing
.
Solid double-skin door
.
Washing cycles number/duration: 1/120 s
.
Capacity: up to 30 baskets/h
.
Water consumption per cycle: 2-2,5 l (depending on water pressure)
.
Washing water temperature: 62°C, rinse water temperature: 85°C
.
Boiler (capacity/power): 3,5 l/2,5 kW.
Tank (capacity/power): 17 l/2,5 kW.
Pump power: 0,1 HP.
Safety thermostat for boiler/for tank up to 105°C/99°C
IP44 protection class.
Weight 39 kg.
EQUIPMENT:
1x universal baskets 400x400x(H)150 mm for glasses
, 1x basket with pins 400x400x(H)110 mm for plates
, 1x cutlery basket 110x110x(H)130 mm
, water supply hose length 1,5 m with connection 3/4” inner thread
, drain hose length 2 m Ø 25 mm,
power cord without plug,
rinse aid dispenser,
adjusted for detergent pump installation (screw in tank rear wall). Vertically adjustable legs: ±10 mm, Ø 40 mm.
1320,00 €
Very easy in use, cleaning, maintenance and even servicing
.
Perfect for washing plates, cutlery, glasses, mugs, trays
.
Electromechanical controls.
Housing made of stainless steel AISI 304
.
Separate spray arms for washing (plastic) and rinsing (stainless steel
).
Fixed washing arms at the top, rotating stainless steel rinsing arms
.
Solid double-skin door
.
Washing cycles number/duration: 1/120 s.
Capacity: up to 30 baskets/h.
Water consumption per cycle: 2-2,5 l (depending on water pressure)
.
Washing water temperature: 62°C, rinse water temperature: 85°C
.
Boiler (capacity/power): 6 l/3 kW for 230V and 6 kW for 400V
.
Tank (capacity/power): 35 l/3,6 kW.
Pump power: 0,75 HP.
Safety thermostat for boiler/for tank up to 105°C/99°C
.
Analog water thermometer for boiler.
IP44 protection class.
Weight: 57 kg
.
EQUIPMENT:
1x universal baskets 500x500x(H)105 mm for glasses
, 1x basket with pins 500x500x(H)105 mm for plates
, 1x cutlery basket 110x110x(H)130 mm
, water supply hose length 1,5 m with connection 3/4” inner thread
, drain hose length 2 m Ø 25 mm
, power cord without plug,
rinse aid dispenser
, adjusted for detergent pump installation (screw in tank rear wall). Vertically adjustable legs: ±10 mm, Ø 40 mm.
1480,00 €
Dimensions: 59.5 x 65 x 83cm.
Includes flush pump.
The rinsing temperature is 85°C.
Quiet machine, only Water consumption per cycle is only 2.8L.
Three complete wash programs of 102, 132 and 192 seconds.
Tank capacity: 27L.
Boiler volume: 6L.
Door height: 33.5cm (maximum glass/plate height 30cm).
Tank element: 2.0kW.
Boiler element: 3.0kW.
Washing pump: 0.66kW.
230V / 50Hz / 1 phase 3600W.
In the set:
Supply hose
Drain hose
One plate basket (50 x 50cm)
One glass basket (50 x 50cm)
One cutlery basket
