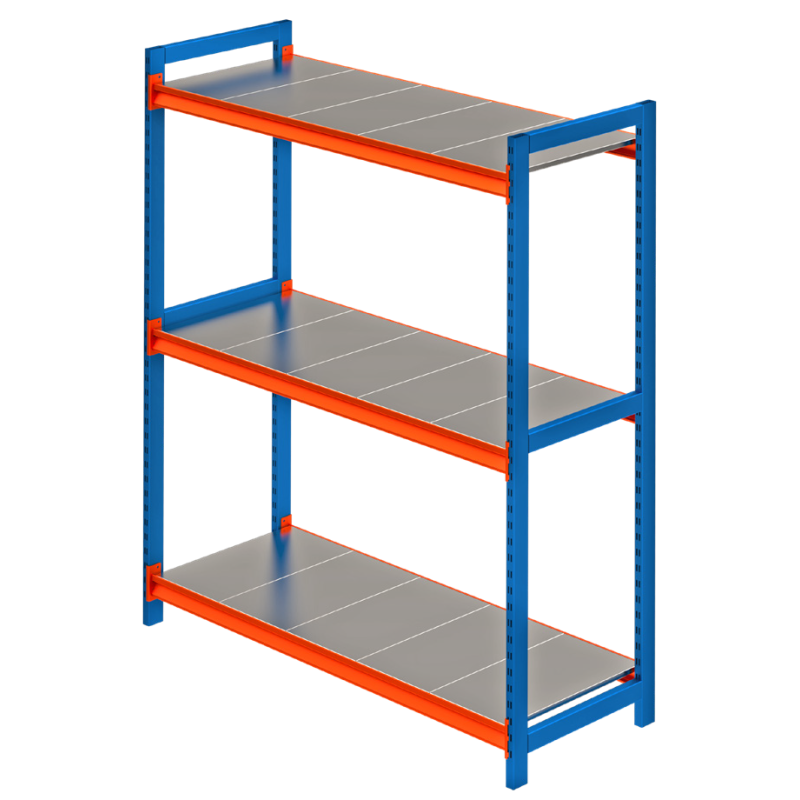

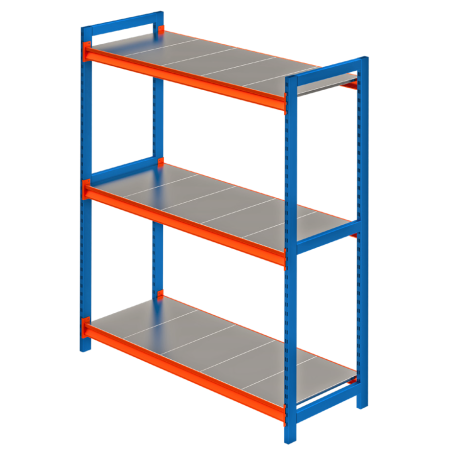

Легкий стеллаж для хранения вещей

The set includes 2 side frames, 5 shelf plates, 1 back cross and shelf carriers.
The shelf plates and side frames are made of galvanized sheet metal.
The side frame consists of two posts, two post soles, connecting elements between the posts and fasteners.
Each the carrying capacity of the shelf plate for an evenly distributed load is 150 kg.
The adjustment step of the shelf surface is 50 mm.
The height of the main part is 2100 mm, the depth is 500 mm.
The exact width of the main part is 1215 mm.
The main part is independent shelf.
Additional parts with the same depth measurement can be attached to the main part to extend the shelf.
Supplied in parts.

The set includes 2 side frames, 5 shelf plates, 1 back cross and shelf carriers.
The shelf plates and side frames are made of galvanized sheet metal.
The side frame consists of two posts, two post soles, connecting elements between the posts and fasteners.
Each the carrying capacity of the shelf plate for an evenly distributed load is 200 kg.
The adjustment step of the shelf surface is 50 mm.
The height of the main part is 2100 mm, the depth is 300 mm.
The exact width of the main part is 1045 mm.
The main part is independent shelf.
Additional parts with the same depth measurement can be attached to the main part to extend the shelf.
Supplied in parts.

The set includes 2 side frames, 5 shelf plates, 1 back cross and shelf carriers.
The shelf plates and side frames are made of galvanized sheet metal.
The side frame consists of two posts, two post soles, connecting elements between the posts and fasteners.
Each the carrying capacity of the shelf plate for an evenly distributed load is 200 kg.
The adjustment step of the shelf surface is 50 mm.
The height of the main part is 2100 mm, the depth is 400 mm.
The exact width of the main part is 1045 mm.
The main part is independent shelf.
Additional parts with the same depth measurement can be attached to the main part to extend the shelf.
Supplied in parts.

Возможные размеры при заказе:

Боковая рама:
высота - 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 | 3250 | 3500 | 3750 | 4000 | 4250 | 4500 | 4750 | 5000 | 5250 | 5500 | 5750 | 6000 мм
глубина - 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 мм
толщина материала - 1,50 | 2,00 мм

Держатель полочной доски:
ширина - 900 |1000 | 1200 |1250 | 1500 |1750 | 1800 | 2000 | 2100 | 2250 | 2400 мм
толщина материала - 1,50 | 2,00 мм

Доски полки:
ширина - 200 | 250 | 300 мм
глубина - 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 мм
толщина материала - 0,80 | 1.00 | 1,50 мм

Возможные размеры при заказе:

Столбы (40x40 мм):
высота - 2000 | 2500 | 3000 мм
толщина материала - 1,50 | 2,00 мм

Полки:
ширина - 600 | 750 | 930 мм
глубина - 310 | 430 | 590 мм
толщина материала - 0,60 | 0,70 | 1,00 мм
