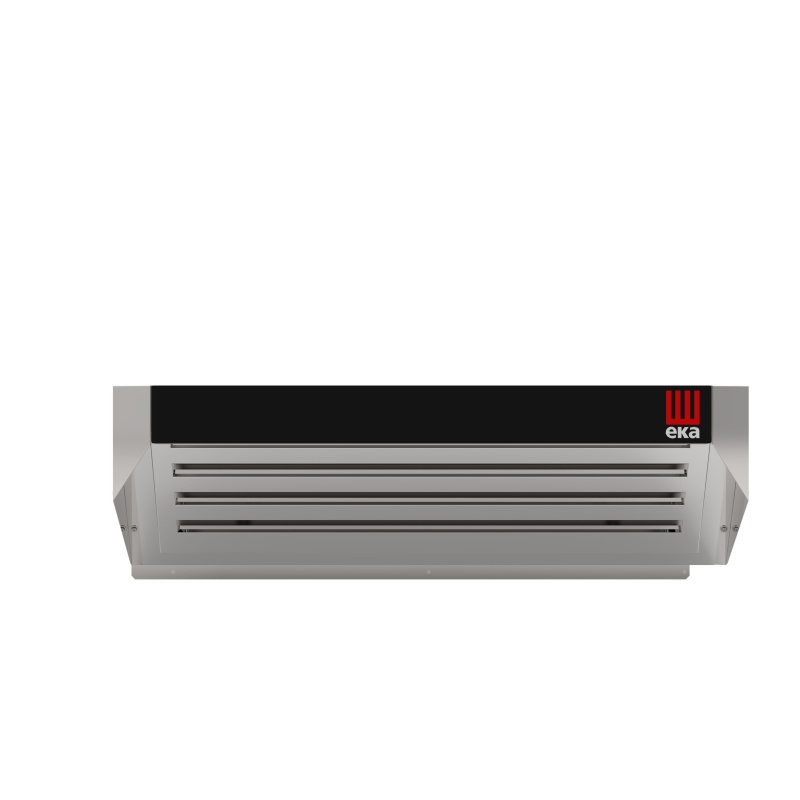

The Tecnoeka Condensing Hood for Ovens is designed to provide effective ventilation above compatible blast ovens in high-use kitchens. Automatic operation mode and efficient steam removal help maintain a more comfortable working environment during daily use.

Single-phase motor with one direction of rotation.

Maximum air flow: between 400 m³/h and 600 m³/h

The housing is made of high-quality stainless steel AISI 430

Connection to fresh water 3/4" pressure 100-200 kPa (1.0-2.0 bar)

No connection to a stationary ventilation pipe or flue is required

The set includes:

– water connection hose, threaded 3/4", length 1.5 m

– 1 labyrinth filter

– cable with a length of 1.6 m

– sewer opening Ø 30 mm

Specifications

• Product code: EKKCN4
• Brand: Tecnoeka
• Input power (W): 200
• Height (mm): 255
• Wire length (mm): 1600
• Width (mm): 784
• Voltage: 220-230
• Length (mm): 907
