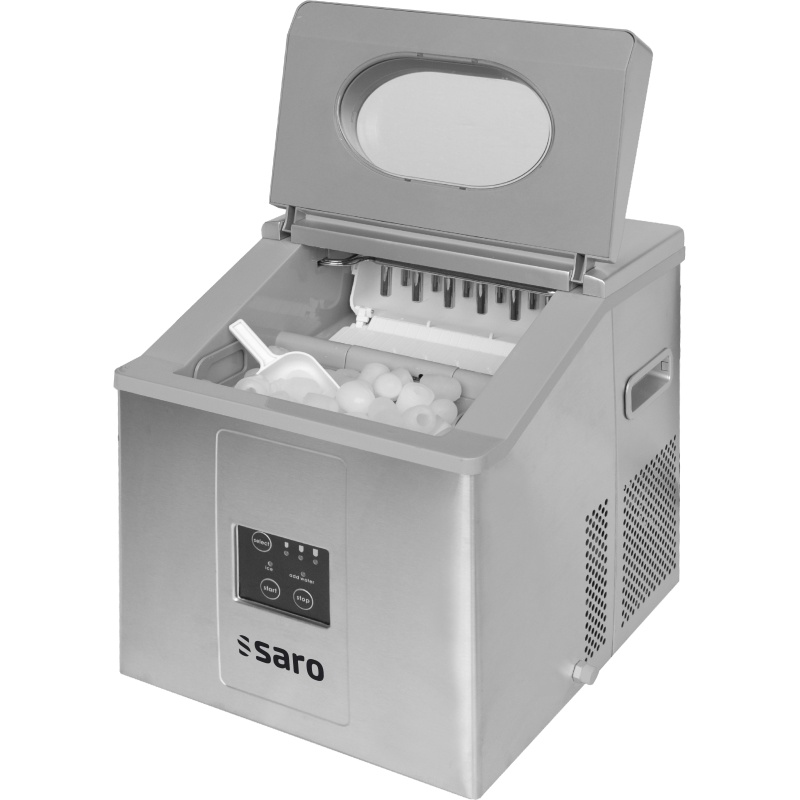

Изготовитель для льда eb15
Material: (housing) stainless steel; (lid) plastic, grey.
With side openings for safe transport.
On/off switch on the back of the device.
3 hollow ice cone sizes can be selected via the display: approx.
Ø 23 x H 29 mm, approx.
Ø 25 x H 32 mm and approx.
Ø 27 x H 33 mm.
For approx.
15 kg / 24 h.
Storage tank: 1.2 kg.
Water tank: approx.
2 liters.
Air cooling.
Suitable for ambient temperatures from 10 to 40 °C.
Connection: 230 V - 50 Hz - 0.110 kW.
External dimensions: W 356 x D 398 x H 430 mm.
Weight: 19kg.
Refrigerant: R600a.
| Neto kaal, kg | 17,2 |
Material: (housing) stainless steel; (flap) plastic, black.
For approx.
54 kg / 24 h (10 °C ambient / 10 °C water temp.).
36 compact and transparent ice cream cones (approx.
20 g each) per cycle.
Stepless ice cream cone size regulation.
Air cooling.
Storage tank: 22 kg (1100 ice cream cones).
Programmable, with touch control panel.
With disinfection cycle and easy interior access for cleaning / maintenance.
Can be controlled and monitored via smartphone with the ""MyICE"" app for constantly optimal production.
Acoustic and visual alarms, anticipatory error analysis possible.
USB port for software updates or HACCP data download, HACCP alarm report.
Incl.
hose for mains water connection (3/4 inch) + drain hose (Ø 20 mm).
Energy-saving, automatic condenser fan adjustment in low ambient temperature.
Suitable for ambient temperatures from 10 to 40 °C.
Suitable for water temperatures (fixed connection) from 5 to 35 °C.
Can be used with 1 to 5 bar water pressure.
Ready to plug in, with Schuko plug.
Connection: 230 V - 50 Hz - 1 Ph.
- 0.440 kW.
External dimensions: W 500 x D 580 x H 800 mm.
Weight (net/gross): 42 / 50 kg.
4 feet for leveling.
Optional high feet can be ordered: Ø 50 x H 100-120 mm.
Refrigerant: R290.
Energy consumption: 20.6 Kwh / 100 kg.
Water consumption: 43.4 L / h.
Heat output: 1.707 kW.
Air volume: 310 m³ / h.
Корпус выполнен из нержавеющей стали.
Вырабатывает прозрачные кубики льда, которые тают медленнее, чем другие виды льда.
Воздушное охлаждение – статическое охлаждение с помощью вентилятора.
Индикаторы низкого уровня воды и полного контейнера для льда.
Функции автоматического размораживания и автоматической очистки.
Емкость контейнера для льда: 42 кг.
Производительность: 90 кг/24 ч.
Хладагент: R290.
