Maxima Dishwasher Vn3000 Ultra 400v

SKU: 09200775
Brand: MAX
Delivery time: Ask for an offer
Price:
7531,00 €
Qty.: - +
   - or -
Nõudepesumasina tüüp potipesu
Similar products

Very easy in use, cleaning, maintenance and even servicing.

Perfect for washing mugs, cups, glasses, cutlery, plates.

Electromechanical controls
.
Housing made of stainless steel AISI 304
.
Separate stainless steel spray arms for washing and rinsing
.
Solid double-skin door
.
Washing cycles number/duration: 1/120 s
.
Capacity: up to 30 baskets/h
.
Water consumption per cycle: 2-2,5 l (depending on water pressure)
.
Washing water temperature: 62°C, rinse water temperature: 85°C
.
Boiler (capacity/power): 3,5 l/2,5 kW.

Tank (capacity/power): 17 l/2,5 kW.

Pump power: 0,1 HP.

Safety thermostat for boiler/for tank up to 105°C/99°C
IP44 protection class.

Weight 39 kg.

EQUIPMENT:
 1x universal baskets 400x400x(H)150 mm for glasses
, 1x basket with pins 400x400x(H)110 mm for plates
, 1x cutlery basket 110x110x(H)130 mm
, water supply hose length 1,5 m with connection 3/4” inner thread
, drain hose length 2 m Ø 25 mm,
power cord without plug,
rinse aid dispenser,
 adjusted for detergent pump installation (screw in tank rear wall). Vertically adjustable legs: ±10 mm, Ø 40 mm.

SKU: 230299 ,   Qty: 4 ,   Delivery time: 5-10 workdays
1125,00 € (10%)
1250,00 €

Extremely easy to use, clean and service.
Ideal for cleaning plates, cutlery, glassware, cups, trays.
Electronic controls.
Detergent and rinse aid dispensers and pump standard included.
Housing made of stainless steel AISI 304.
Rotating plastic washing and stainless steel rinsing arms at the bottom of the chamber.
Stationary plastic washing arms and rotating stainless steel rinse arms at the top of the chamber.
Robust double-skinned door fitted with a microswitch, stops the program when opened.
Maximum height of glasses: 325 mm.
Maximum height of plates: 335 mm.
Water temperature during washing: 60°C.
Water temperature during rinsing: 85°C.
Boiler (capacity/power): 6L / 6 kW
Bath (capacity/power): 35L / 2.8 kW.
Washing pump: 0,75 kM.
Safety thermostat for boiler/bath: up to 105°C / 99°C.
Electronic water thermometer for boiler and tank.
Sealing factor of the pump: IP 44
ø40 mm feet, ±10 mm in height adjustable
Weight: 55 kg.


FUNCTIONS:
Three washing programs: 60, 120, 180 s. (The washing program will be automatically extended with the time needed for warming up the rinsing water to +85°C)
Dishwasher chamber cleaning program.
Cold rinse function - ideal for glass washing.
THERMO-PROTECTOR system to prevent cold water flushing - guarantees the rinsing won't start till the temperature is 85°C.
SOFT START system starts the water pump at a low level pressure and gradually increases the pressure to protect delicate items.
8-point self-diagnostic system.
ECO system - for reduced power consumption.


BENEFITS OF COLD RINSE:
Cools down the glasses after cleaning, making them ready for use immediately.
Removes the smell of rinse aid, ideal for wine glasses.


EQUIPMENT:
1 universal glass basket 500x500x(H)105 mm.
1 basket with pins for deep and shallow plates with 5x8 pcs, 500x500x(H)105 mm.
1 cutlery basket 110x110x(H)130 mm.
Electric detergent and rinse aid dispenser.
Water hose 1. 5 m long, with 3/4 female thread connection.
Drain pump and drain hose.
Power cord without plug.

SKU: 231753 ,   Qty: 4 ,   Delivery time: 5-10 workdays
1854,00 € (10%)
2060,00 €

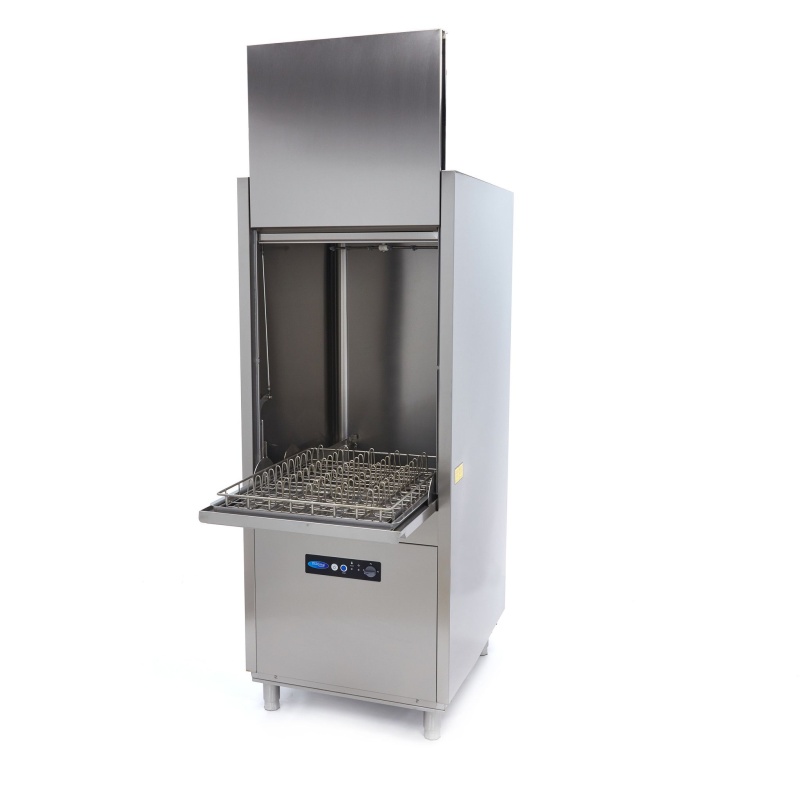

Specialised dishwasher, perfect for washing and scalding pots, GN containers, 600x400 mm confectionery trays, flasks, trays or cutlery.
3 electronically controlled washing cycles: 120s, 180s, 240s.
Scalding temperature: 82°C.
Washing temperature: 60°C.
Boiler capacity/power: 7.4 L/4 kW (236567).
7.4 L/6 kW (236574).
Basin capacity/power: 58 L/4 kW (236567).
58 L/6 kW (236574).
Electronic touch panel.
Automatic cleaning system.
Pump tightness coefficient: IP 44.
Large basket: 500x600 mm.
Two-layer housing made of AISI 304 stainless steel.
Washing and rinsing arms made of stainless steel.
Weight: 57 kg.
EQUIPMENT: – Detergent dispenser.
– Rinse aid dispenser.
– Electronic thermometer in boiler.
– Electronic thermometer in basin.
- 1,2 kW washing pump.
– Drain pump.
– Plate basket 500x600x(H)105 mm.
– Universal basket 500x600x(H)105 mm.
– Cutlery basket 110x110x(H)130 mm.

SKU: 236567 ,   Qty: 1 ,   Delivery time: 5-10 workdays
4401,00 € (10%)
4890,00 €

Very easy in use, cleaning, maintenance and even servicing.
Perfect for washing plates, cutlery, glasses, mugs, trays, GN containers.
Electromechanical controls.
Housing made of stainless steel AISI 304.
Separate stainless steel spray arms for washing and rinsing.
4 surface filters over tank water level.
Additional sieve in front of the pump inlet.
Built-in springs for easy hood lift.
Washing cycles number/duration: 1/120 s.
Capacity: up to 30 baskets/h.
Water consumption per cycle: 2-2,5 l (depending on water pressure).
Washing water temperature: 62°C, rinse water temperature: 85°C.
Boiler (capacity/power): 7,4 l/7,5 kW.
Tank (capacity/power): 68 l/6,0 kW.
Pump power: 1,5 HP.
Safety thermostat for boiler/for tank up to 105°C/99°C.
Analog water thermometer for boiler and tank.
IP44 protection class.
Weight 111 kg.
EQUIPMENT:1x universal basket 500x500x(H)105 mm for glasses, 1x basket with pins 500x500x(H)105 mm for plates, 1x cutlery basket 110x110x(H)130 mm.
Water supply hose length 1,5 m.
Drain hose.
Power cord without plug.
Rinse aid dispenser.
Adjusted for detergent pump installation (screw in tank rear wall).
Vertically adjustable stainless steel legs, regulated from 100 to 150 mm.

SKU: 230312 ,   Qty: 1 ,   Delivery time: 5-10 workdays
2754,00 € (10%)
3060,00 €

Specialised dishwasher, perfect for washing and scalding pots, GN containers, 600x400 mm confectionery trays, flasks, trays or cutlery.
3 electronically controlled washing cycles: 120s, 180s, 240s.
Scalding temperature: 82°C.
Washing temperature: 60°C.
Boiler capacity/power: 7.4 L/4 kW (236567), 7.4 L/6 kW (236574).
Basin capacity/power: 58 L/4 kW (236567), 58 L/6 kW (236574).
Electronic touch panel.
Automatic cleaning system.
Pump tightness coefficient: IP 44.
Large basket: 500x600 mm.
Two-layer housing made of AISI 304 stainless steel.
Washing and rinsing arms made of stainless steel.
Weight: 57 kg.
EQUIPMENT:
– Detergent dispenser.
– Rinse aid dispenser.
– Electronic thermometer in boiler.
– Electronic thermometer in basin.
- 1,2 kW washing pump.
– Drain pump.
– Plate basket 500x600x(H)105 mm.
– Universal basket 500x600x(H)105 mm.
– Cutlery basket 110x110x(H)130 mm.

SKU: 236574 ,   Qty: 3 ,   Delivery time: 5-10 workdays
4401,00 € (10%)
4890,00 €
