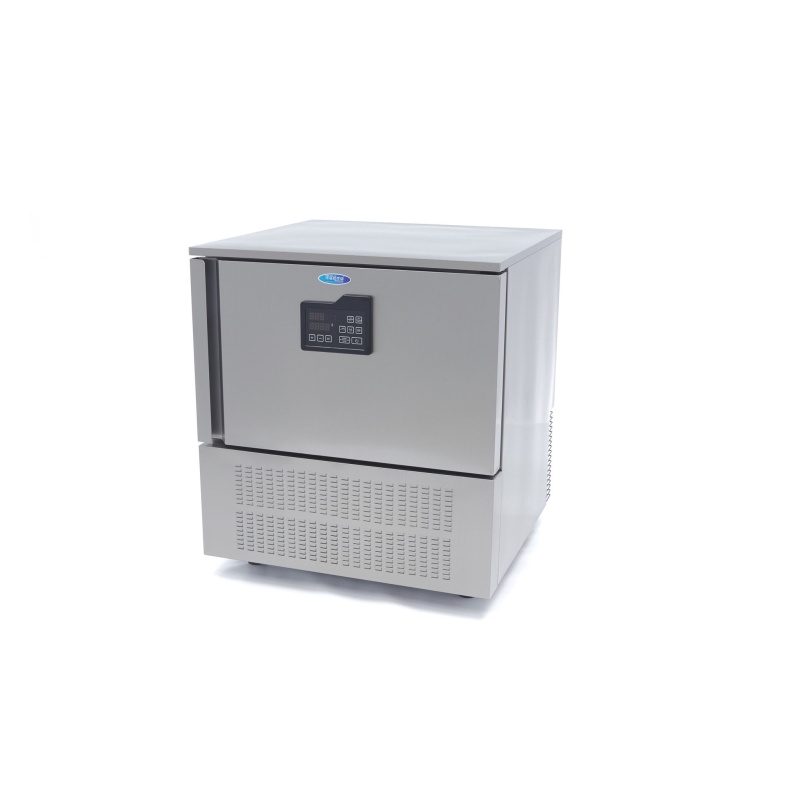

Maxima Blast Chiller - 3 x 1/1 Gn
Delivery time: Ask for an offer
Chamber capacity: 5 x GN 1/1 or 5 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x410 mm.
5 sets of rails, 70 mm apart.
Output at chilling to +3° C: 20 kg.
Output at freezing to -18°C: 15 kg.
Weight: 71 kg.
Chamber capacity: 20 x GN 1/1 or 20 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x1360 mm.
10 sets of rails, 65 mm apart.
Output at chilling to +3° C: 50 kg.
Output at freezing to -18°C: 40 kg.
Designed especially for catering companies, wedding houses, restaurants.
Allows for more efficient planning of production cycles of large batches of dishes or semi-finished products in the kitchen.
Housing and chamber made of stainless steel.
640×452×(H)870 mm chamber equipped with 10 pairs of guides, interspaced at 75 mm to accommodate 10 GN 1/1 containers or 10 600x400 mm trays.
Possibility to change the direction of door opening.
Efficient cooling is provided by 2 fans.
Automatic storage function – at the end of the preset cycle the unit switches to standard operating mode (cooling or freezing).
Separate functions for ice cream freezing cycle (-20°C) and deep surface freezing (-40°C).
Evaporator with corrosion protection.
Cooling capacity: 25 kg (+90°C/+3°C)/cycle.
Freezing capacity: 20 kg (+90°C/-18°C)/cycle.
75 mm thick cyclopentane foam insulation.
Acoustic and visual open door alarm.
Microswitch to stop operation when the chamber door is opened.
Thermostat with digital display for monitoring chiller’s operation
Height adjustable stainless steel feet.
Climatic class: 5.
Trouble-free operation in ambient temperature up to 40°C.
Net weight: 120 kg.
Material: (housing and interior) stainless steel.
Suitable for 10 x 1/1 GN or W 600 x D 400 mm trays.
4 cycles pre-programmed.
Core temperature probe.
Rapid chilling: 40 kg from +70 to +3 °C in 90 min., Shock freezing: 28 kg from +70 to -18 °C in 240 min..
Digital temperature control (DIXELL).
Insulation: 70 mm.
Static cooling with circulating air fan.
-18 / -22 °C.
Connection: 230 V - 1 Ph.
- 1,300 kW.
Content: 368 liters.
Internal dimensions: W 660 x D 640 x H 870 mm.
External dimensions: W 800 x D 815 x H 1645 mm.
4 adjustable feet.
Sound level: 60DBA.
