Chamber capacity: 10 x GN 1/1 or 10 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x760 mm .10 sets of rails, 70 mm apart.
Output at chilling to +3° C: 25 kg.
Output at freezing to -18°C: 20 kg.
Weight: 90kg.

Chamber capacity: 15 x GN 1/1 or 15 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x1120 mm.
15 sets of rails, 70 mm apart.
Output at chilling to +3° C: 45 kg.
Output at freezing to -18°C: 35 kg.
Weight: 120 kg.

Chamber capacity: 20 x GN 1/1 or 20 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x1360 mm.
10 sets of rails, 65 mm apart.
Output at chilling to +3° C: 50 kg.
Output at freezing to -18°C: 40 kg.
Weight: 150kg.

Chamber capacity: 3 x GN 1/1 or 3 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x280 mm.
3 sets of rails, 70 mm apart.
Output at chilling to +3° C: 14 kg.
Output at freezing to -18°C: 11 kg.
Weight: 50 kg.

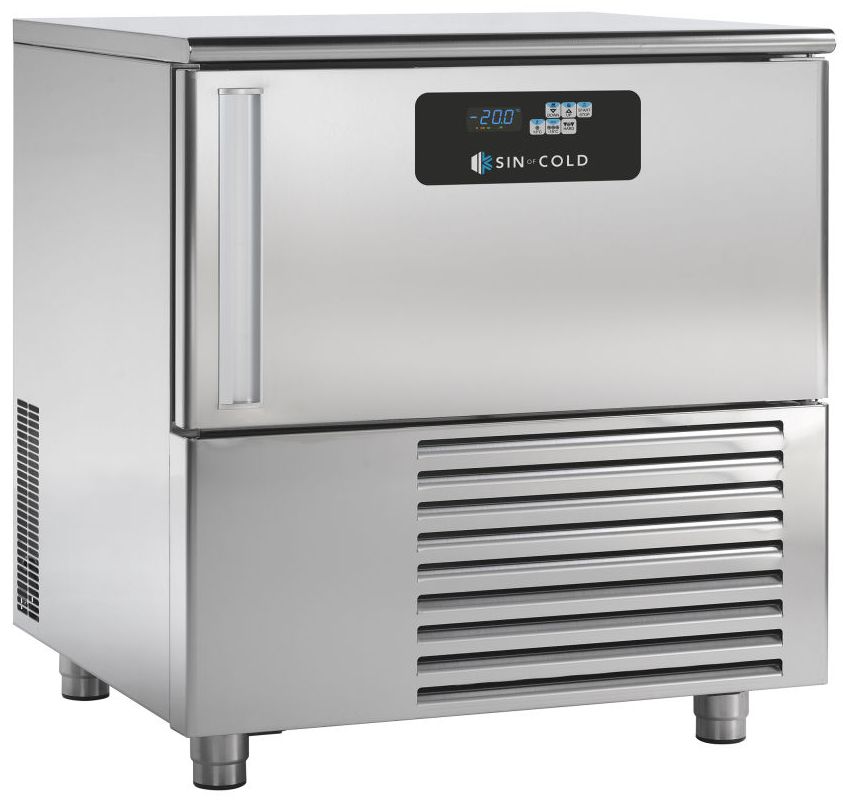

For quick cooling or freezing of prepared food, freezing cakes, desserts, fish or ice cream
Stainless steel exterior and chamber interior, galvanized steel base
Chamber with rounded internal corners for easy cleaning
3 stainless steel guides suitable for GN 2/3
60 mm polyurethane insulation, injected under high pressure
Self-sealing door with left hand hinges and magnetic seal
Front panel with electronic control and display
Easy access to capacitor for cleaning and maintenance
Manual defrosting with door open
Removable drip tray
Distance between guides: 80 mm
Cooling capacity at 9kg: (+65°C/+3°C) in max. 90 min
Freezing capacity at 7kg: (+65°C/-18°C) in 240 min
Cooling Agent: R455
Fan forced cooling
Chamber and Core Probe Included
Adjustable feet (up to 20 mm)

Chamber capacity: 5 x GN 1/1 or 5 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x410 mm.
5 sets of rails, 70 mm apart.
Output at chilling to +3° C: 20 kg.
Output at freezing to -18°C: 15 kg.
Weight: 71 kg.

Chamber capacity: 7 x GN 1/1 or 7 x 600x400 mm trays.
Inside dimensions of the chamber: 610x410x760 mm.
7 sets of rails, 105 mm apart.
Output at chilling to +3° C: 25 kg.
Output at freezing to -18°C: 20 kg.
Weight: 90 kg.

Material: (housing and interior) stainless steel.
Suitable for 3x 1/1 GN or 3x 600 x 400 mm (trays).
3 adjustable temperature levels.
Timer function.
Core temperature probe.
Rapid chilling: from +65 °C / +10 °C in 105 minutes, maximum load capacity: 15 kg.
Blast freezing: from +65 °C / -18 °C in 255 minutes, maximum load capacity: 9 kg.
Digital temperature control.
Static cooling with circulating air fan.
Manual defrost.
Temp.
+3 / -40 °C.
Connection: 230 V - 50 Hz - 0.220 kW.
Content: 70 liters.
Internal dimensions: W 616 x D 430 x H 270 mm.
External dimensions: W 750 x D 750 x H 770/790 mm.
4 feet for leveling.
Weight: 89 kg.
Refrigerant R452a (GWP 2140); 900g; 1.926 CO2 equivalent.

Material: (housing and interior) stainless steel.
Suitable for 5x 1/1 GN or 5x 600 x 400 mm (trays).
3 adjustable temperature levels.
Timer function.
Core temperature probe.
Rapid cooling: from +65 °C / +10 °C in 110 minutes, maximum load capacity: 23 kg.
Blast freezing: from +65 °C / -18 °C in 250 minutes, maximum load capacity: 12 kg.
Digital temperature control.
Static cooling with circulating air fan.
Manual defrost.
Temp.
+3 / -40 °C.
Connection: 230 V - 50 Hz - 0.720 kW.
Content: 100 liters.
Internal dimensions: W 616 x D 430 x H 390 mm.
External dimensions: W 750 x D 750 x H 890/910 mm.
4 wheels.
Weight: 98kg.
Refrigerant R452a (GWP 2140); 1500g; 3.212 CO2 equivalent.

Material: (housing and interior) stainless steel.
Suitable for 10 x 1/1 GN or W 600 x D 400 mm trays.
4 cycles pre-programmed.
Core temperature probe.
Rapid chilling: 40 kg from +70 to +3 °C in 90 min., Shock freezing: 28 kg from +70 to -18 °C in 240 min..
Digital temperature control (DIXELL).
Insulation: 70 mm.
Static cooling with circulating air fan.
Temp.
-18 / -22 °C.
Connection: 230 V - 1 Ph.
- 1,300 kW.
Content: 368 liters.
Internal dimensions: W 660 x D 640 x H 870 mm.
External dimensions: W 800 x D 815 x H 1645 mm.
4 adjustable feet.
Weight: 190kg.
Refrigerant: R290.
Sound level: 60DBA.
